Right Door Pillar Repair and Rear Undercarriage Coating (September 13, 2004)

Here are pictures of the repairs done the the passenger side inner door pillar. These repairs came out better looking than the left side. It's good to see the practice from the left side helped the right side.
I also finished stripping the rear frame rails, and rear undercarriage. Of all the jobs on the car so far, lying on your back with a grinder with wire wheel stripping rust and undercoating has to be the worst. I will be glad when the rest of the undercarriage is done. I was glad when the rear undercarriage was stripped then finally coated with ZeroRust. I also coated the inner pillars with the stuff too. It is starting to look like a clean fresh frame.
I also have a shot of a set of leaf springs cleaned up and coated with POR15 and a shot of my sub frame connectors after being sand blasted. swiss replica watches

Status photos as of 9/13/2004:

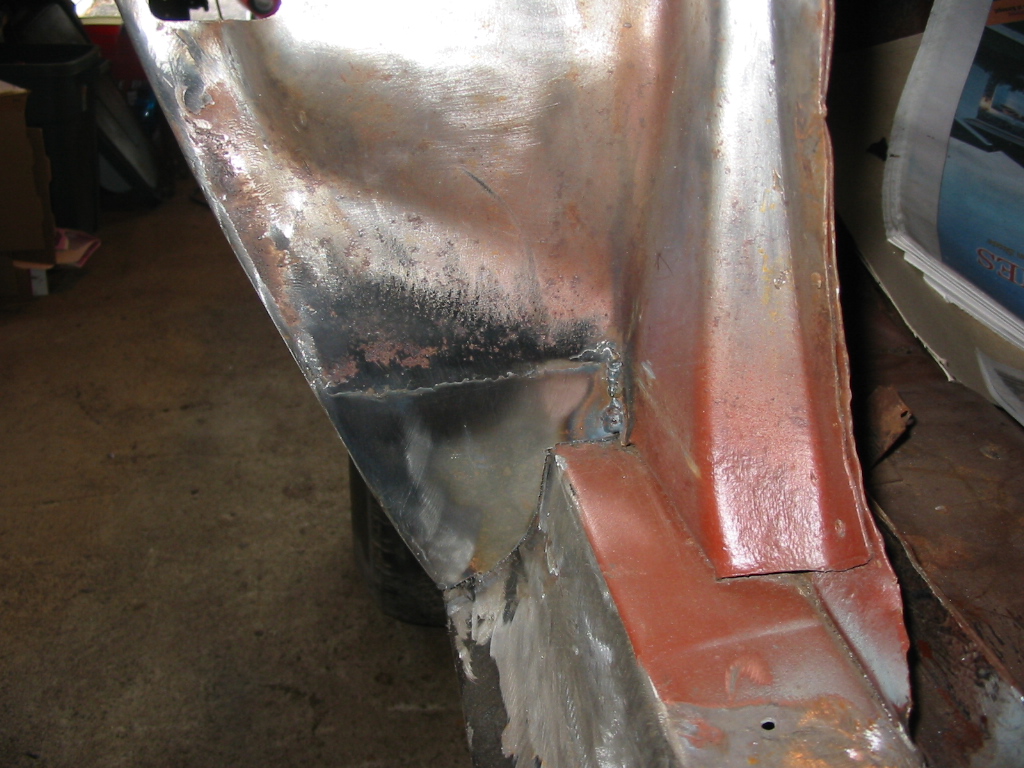

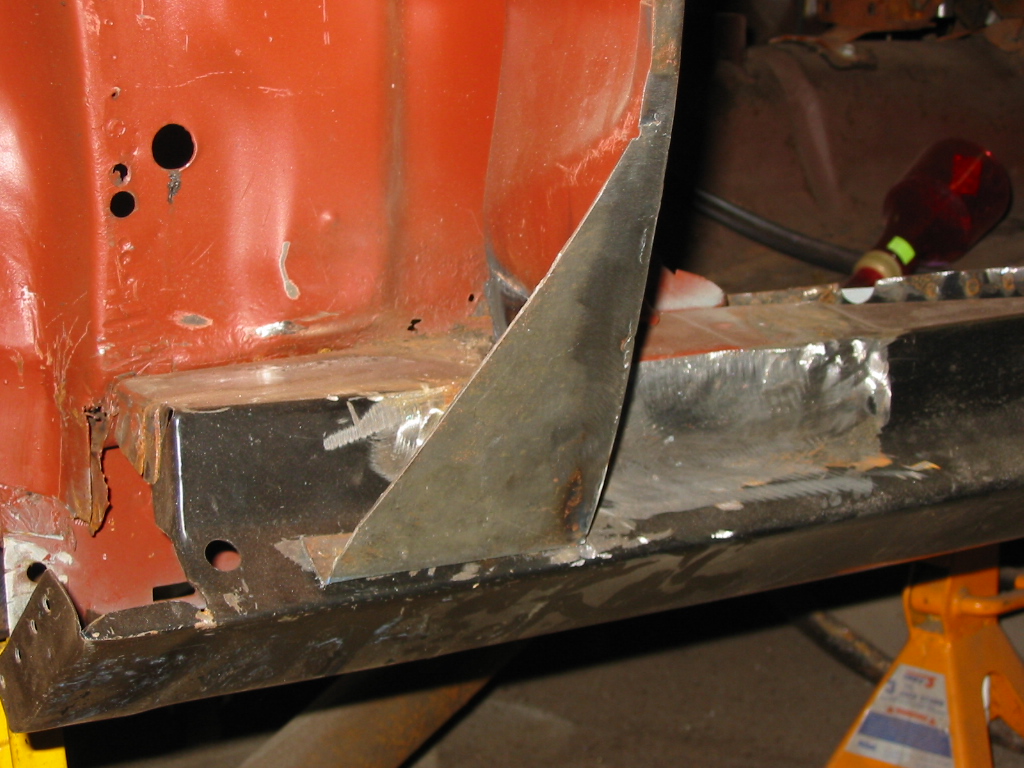

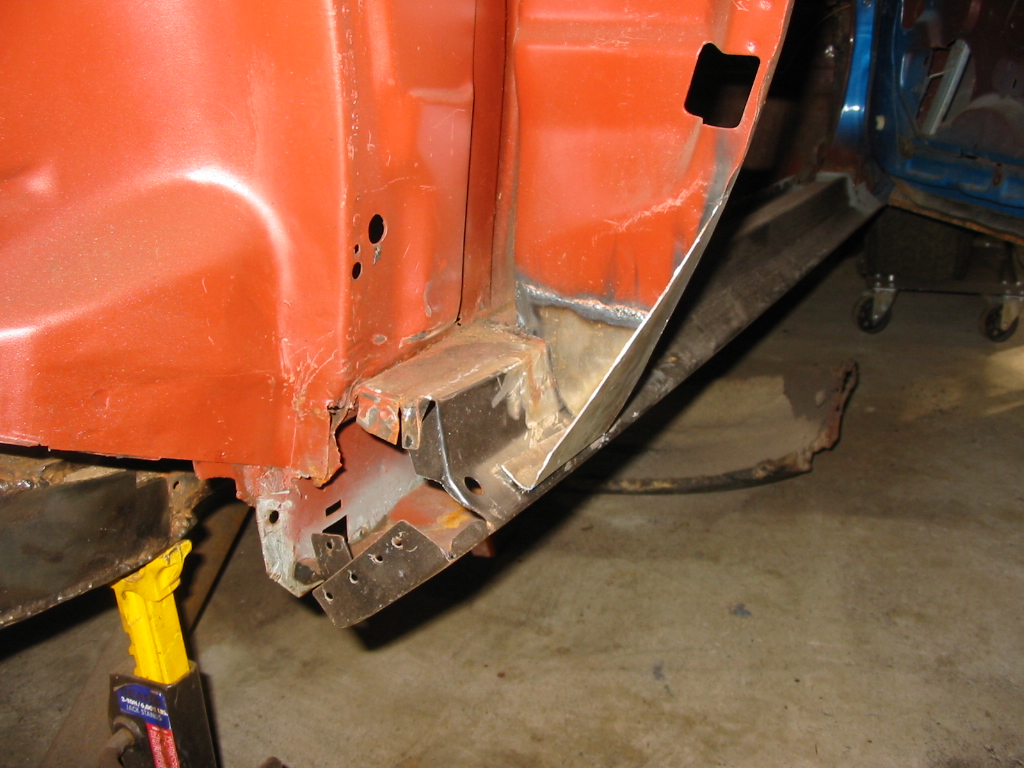

Here is the repaired right inner door pillar. I had to replace the bottom portion.

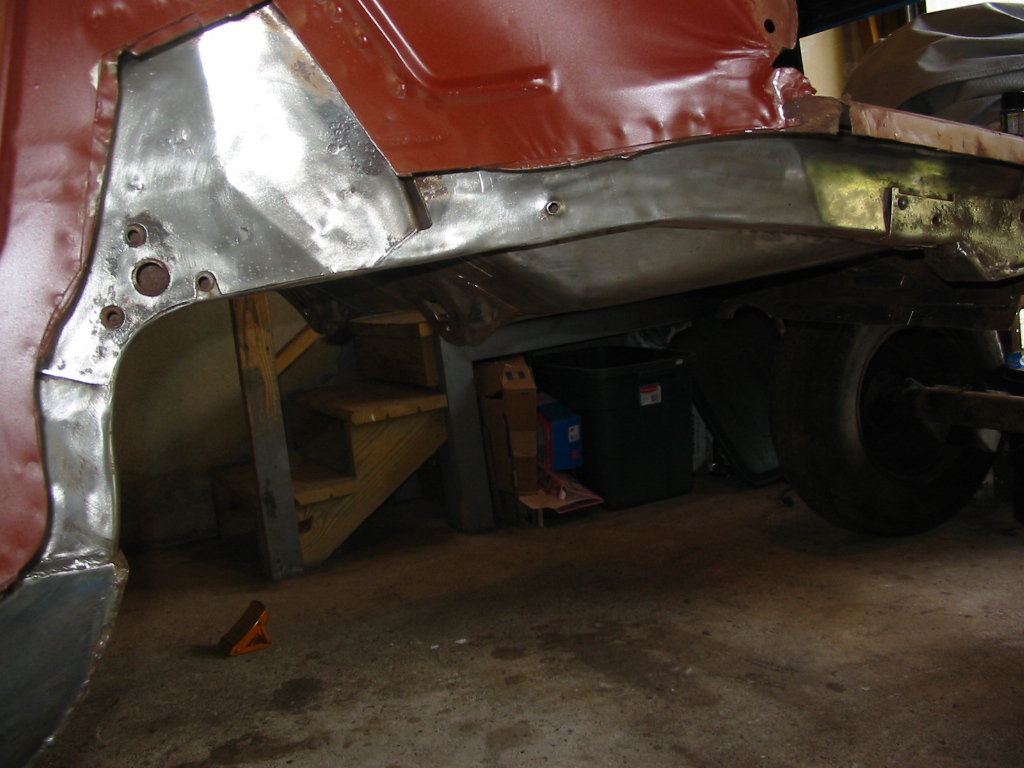

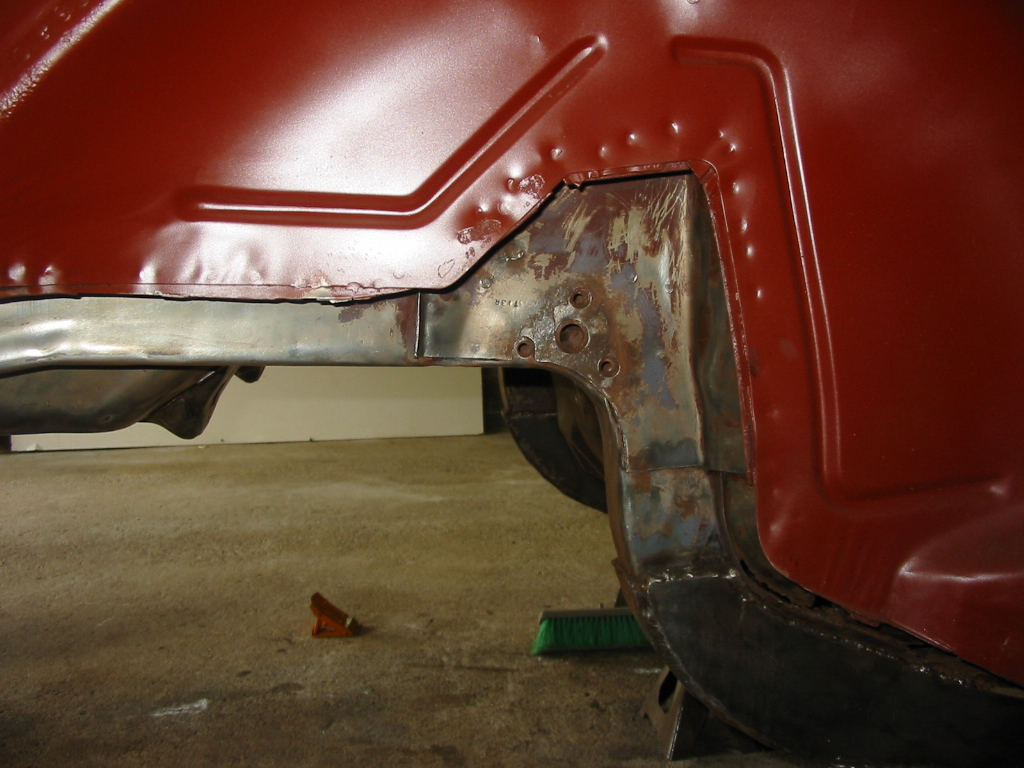

Here is the stripped left frame rail Here is the stripped right frame rail

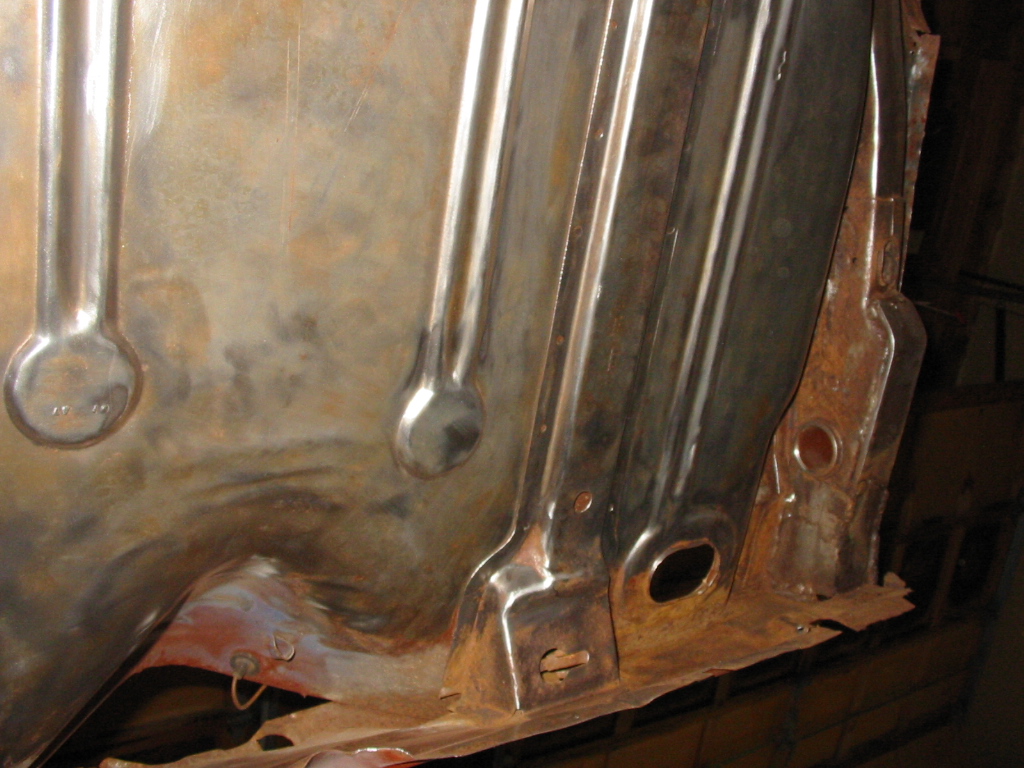

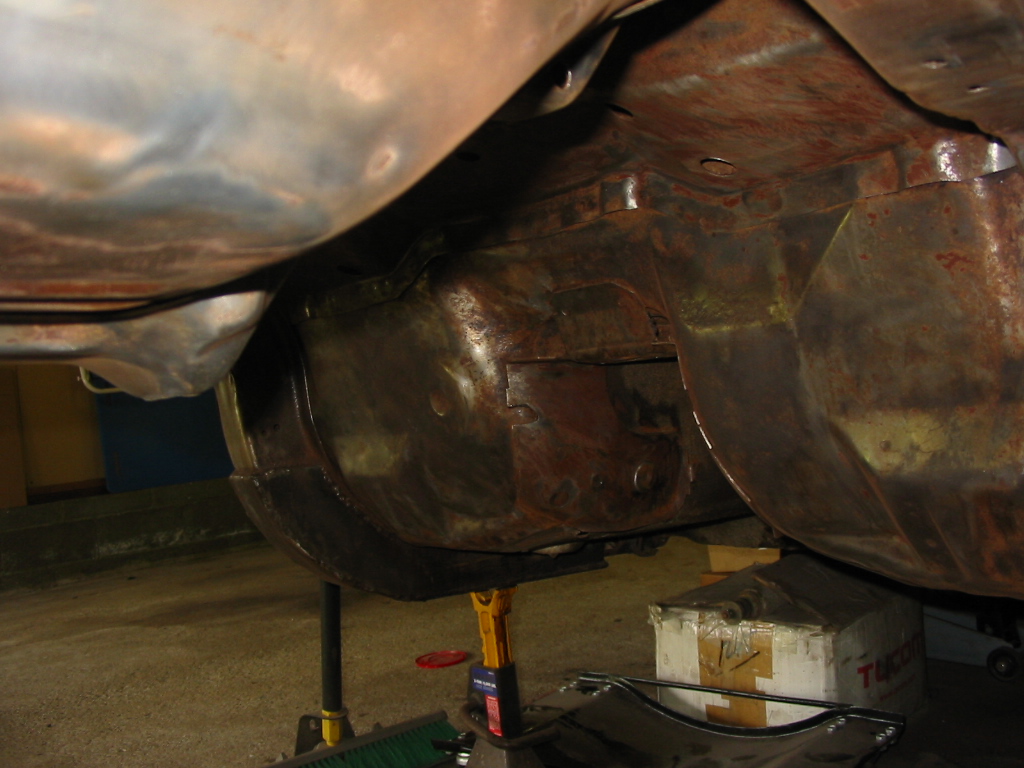

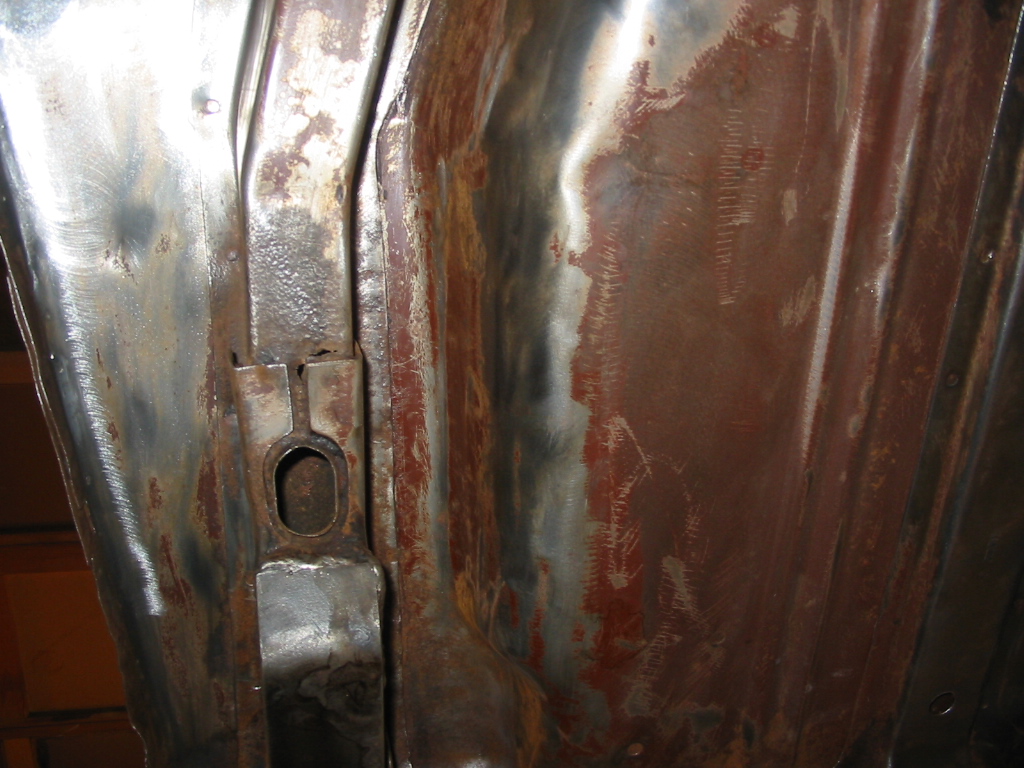

Here are a few shots from the rear undercarriage stripping process.

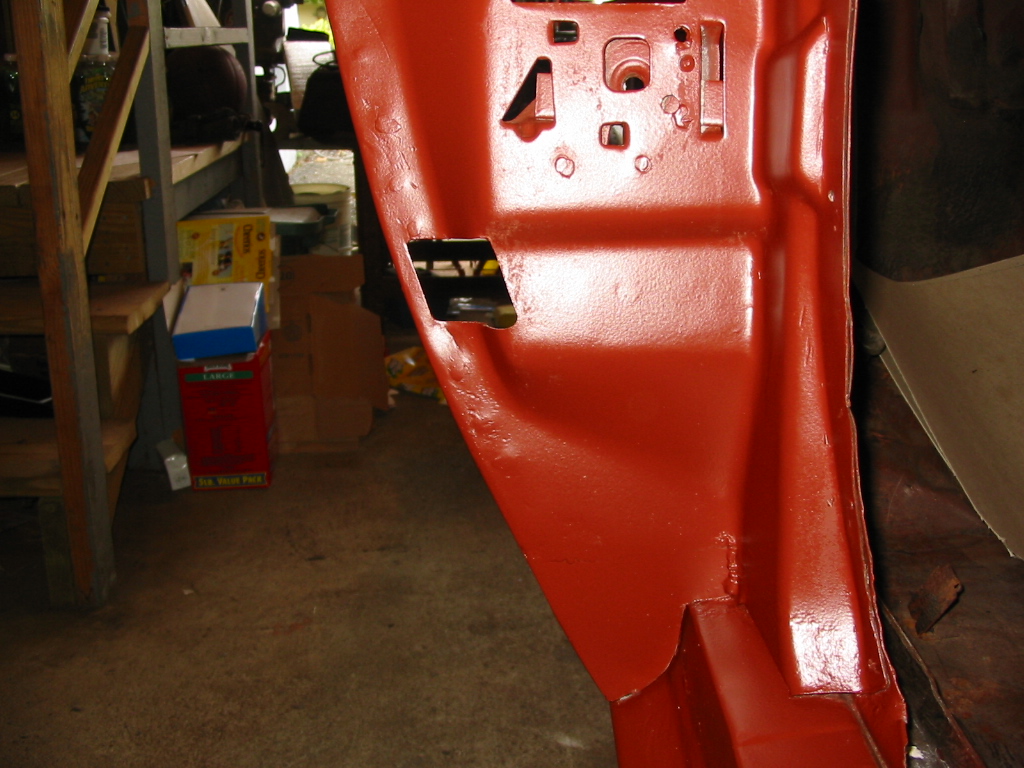

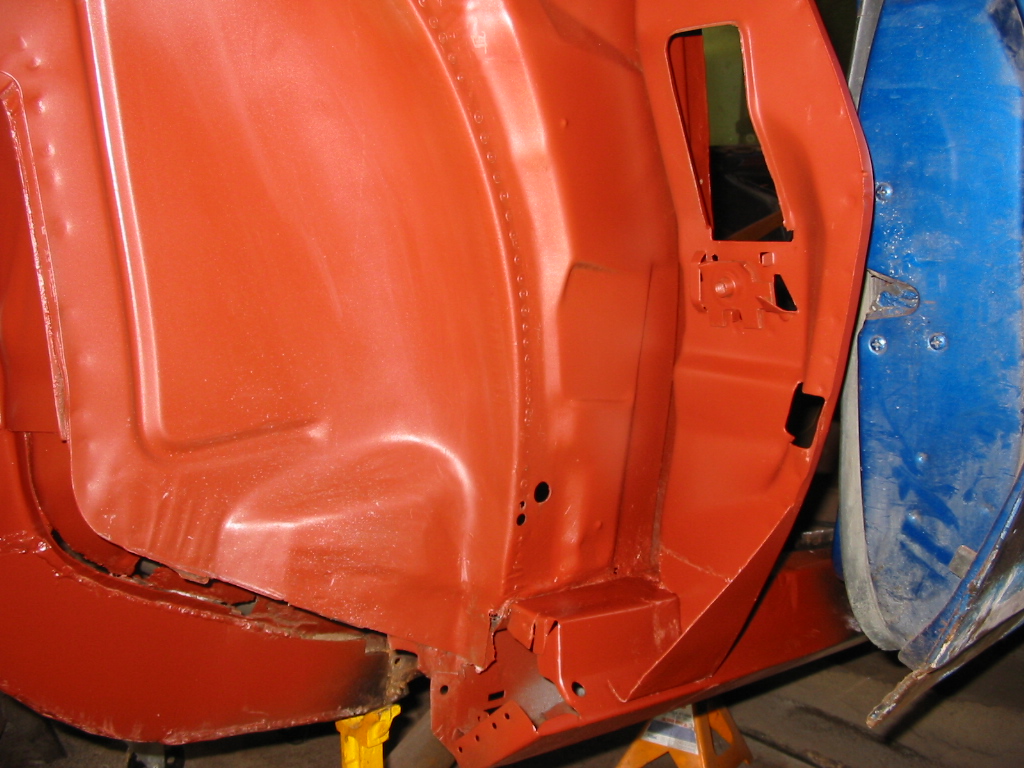

Here is a couple of shots of the right inner door pillar coated with ZeroRust

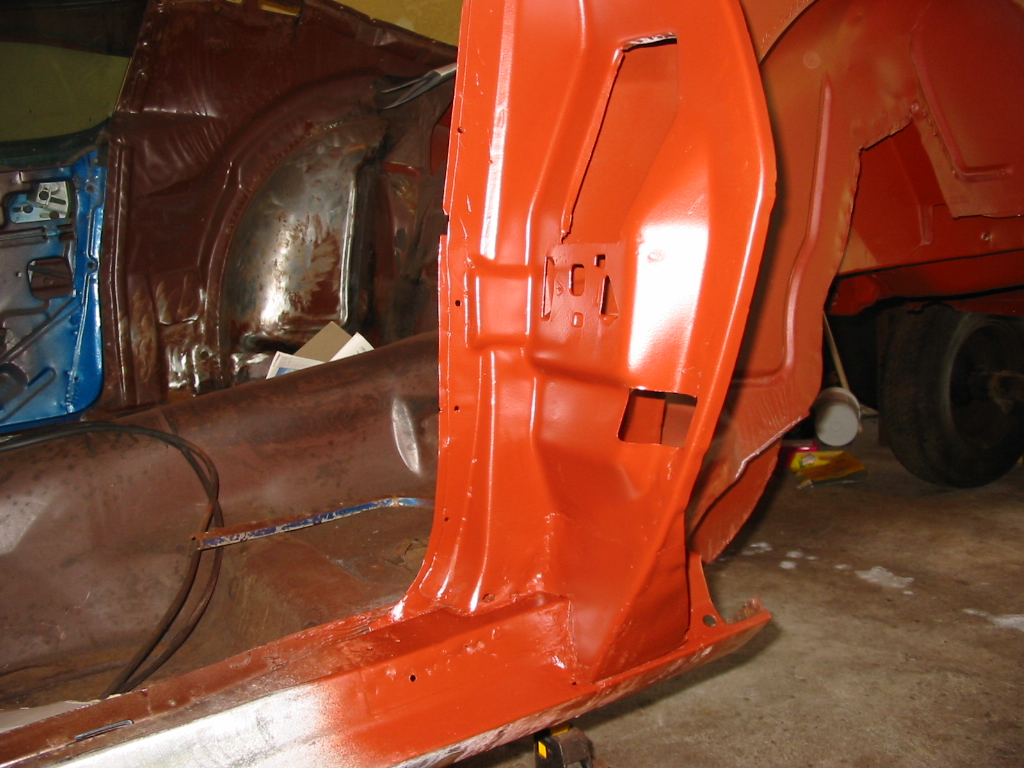

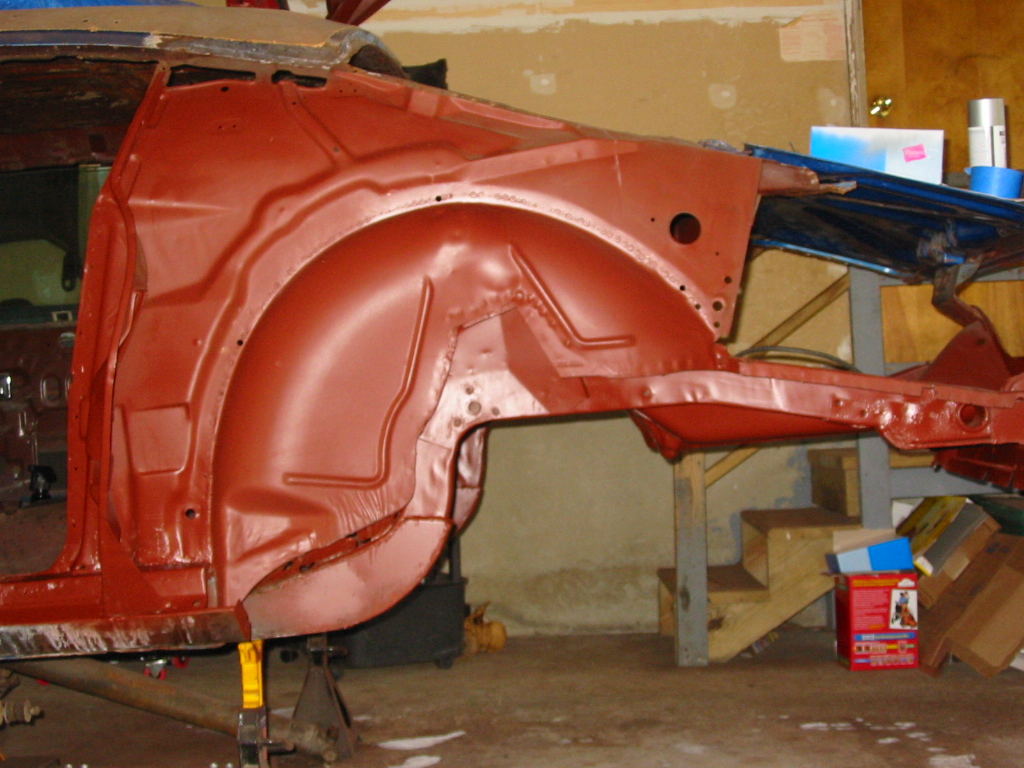

Here is a shot of the left inner door pillar coated with ZeroRust Here is a shot of the left inner door pillar and left frame rail coated with ZeroRust

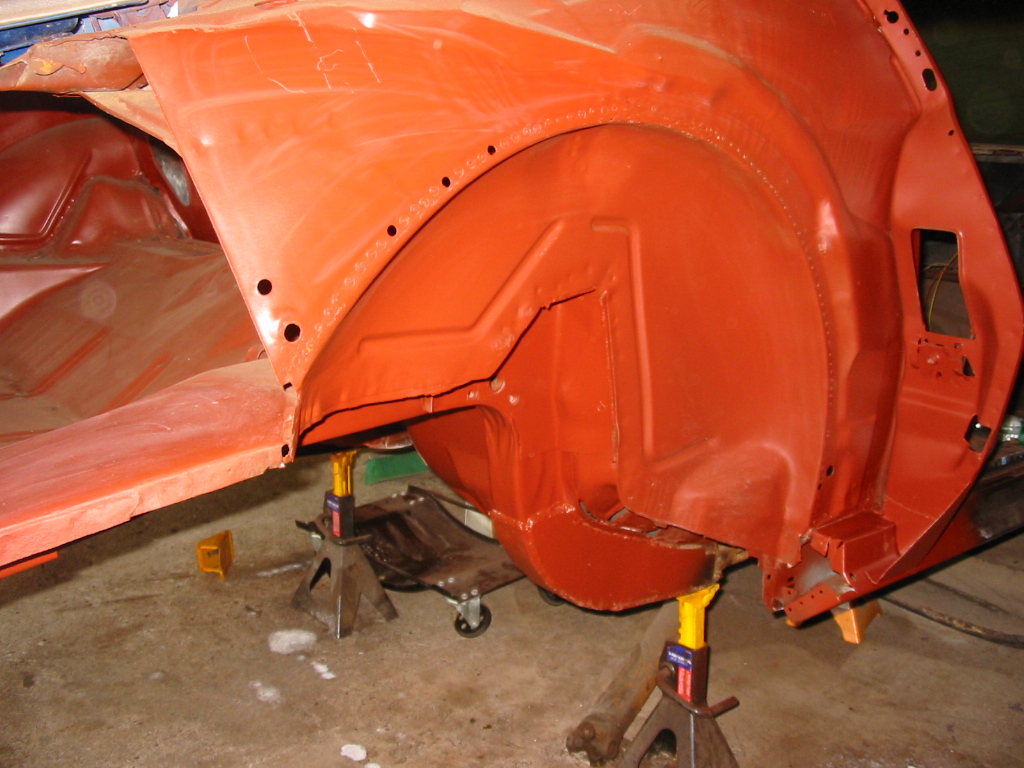

Here is a shot of the right inner door pillar and right frame rail coated with ZeroRust

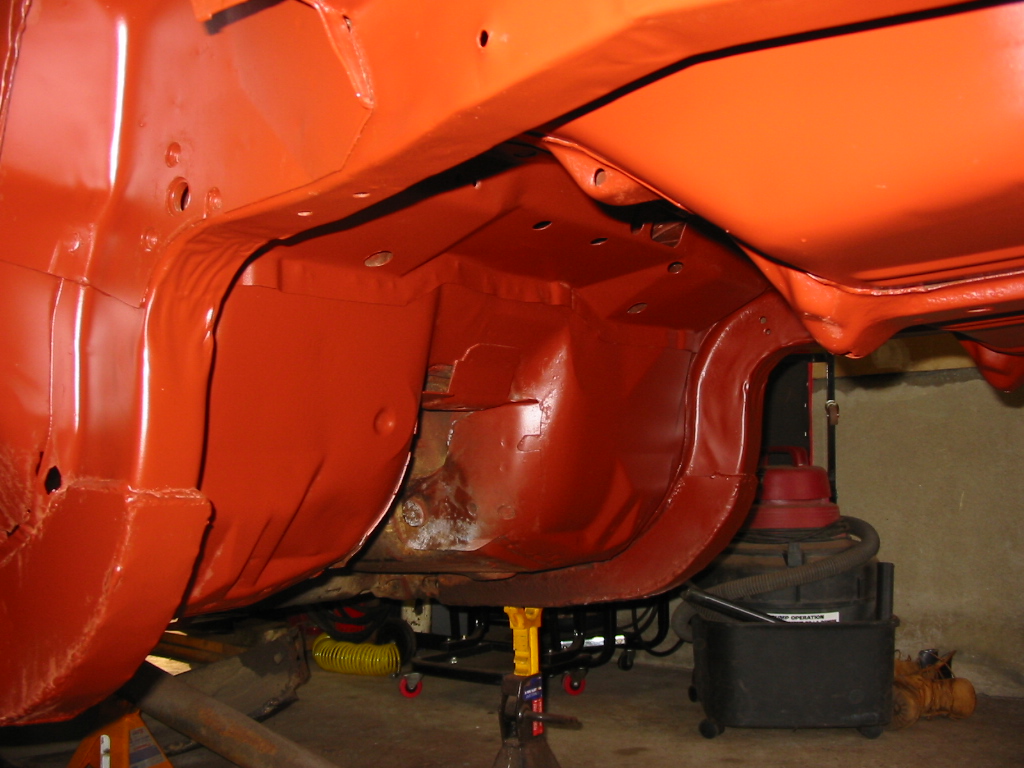

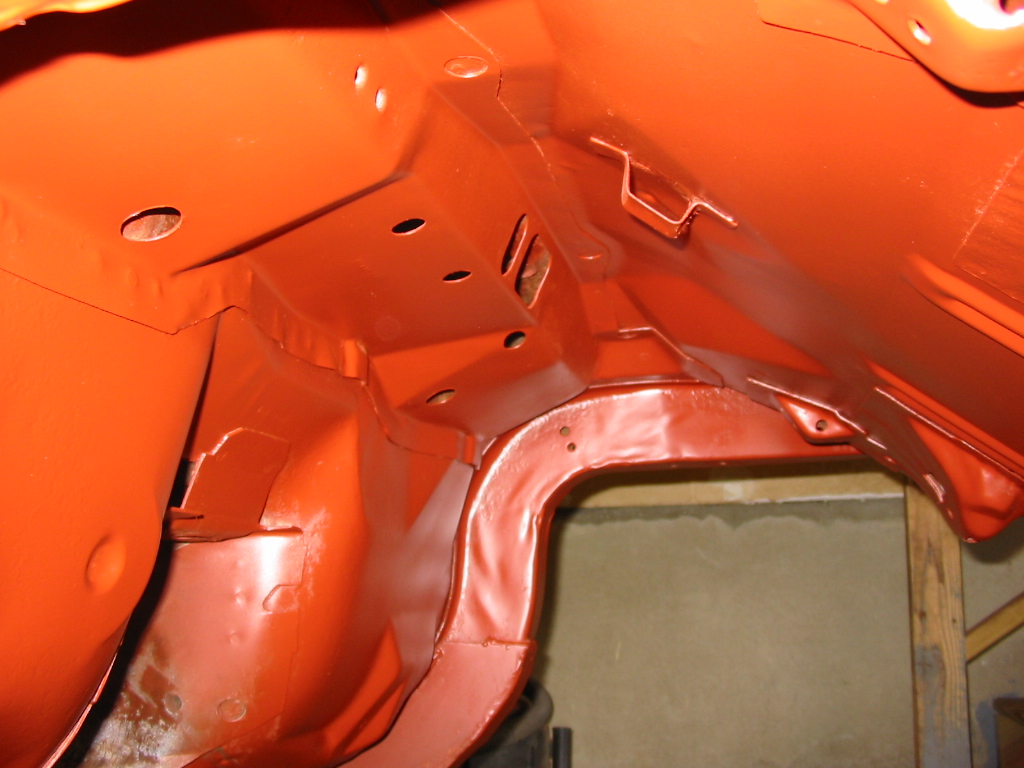

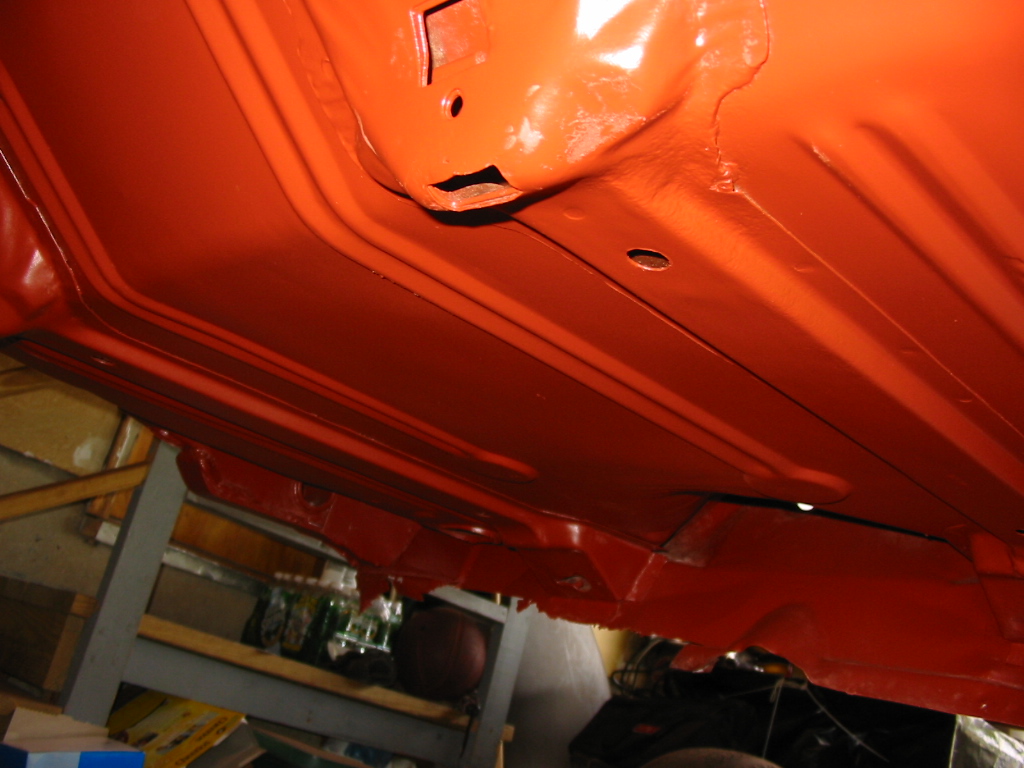

Here are a couple of shots of the rear undercarriage coated with ZeroRust.

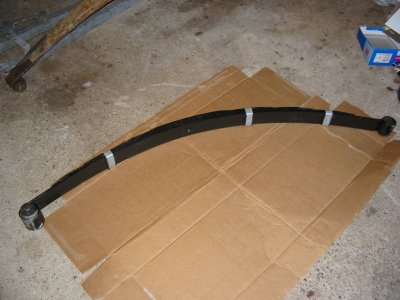

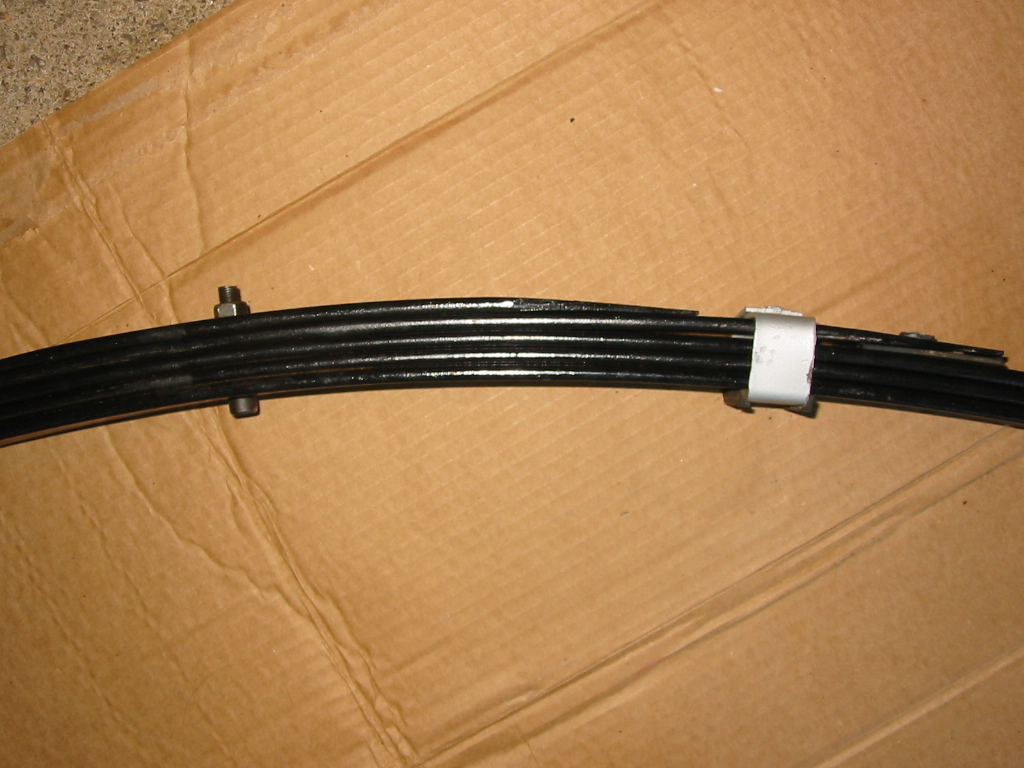

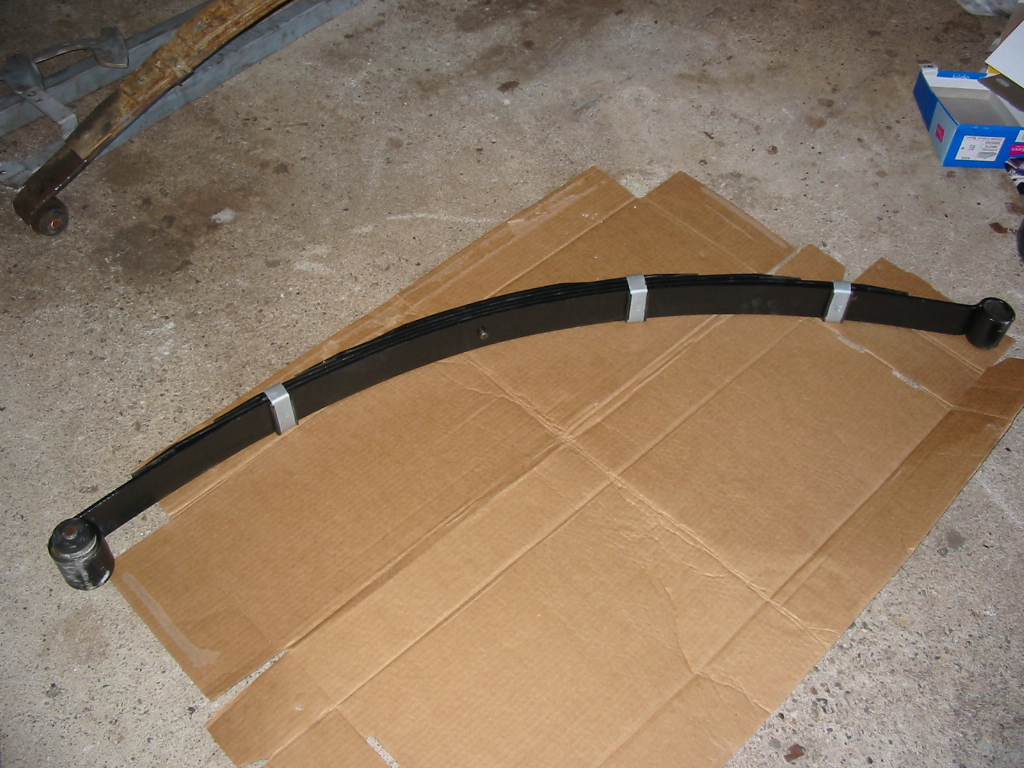

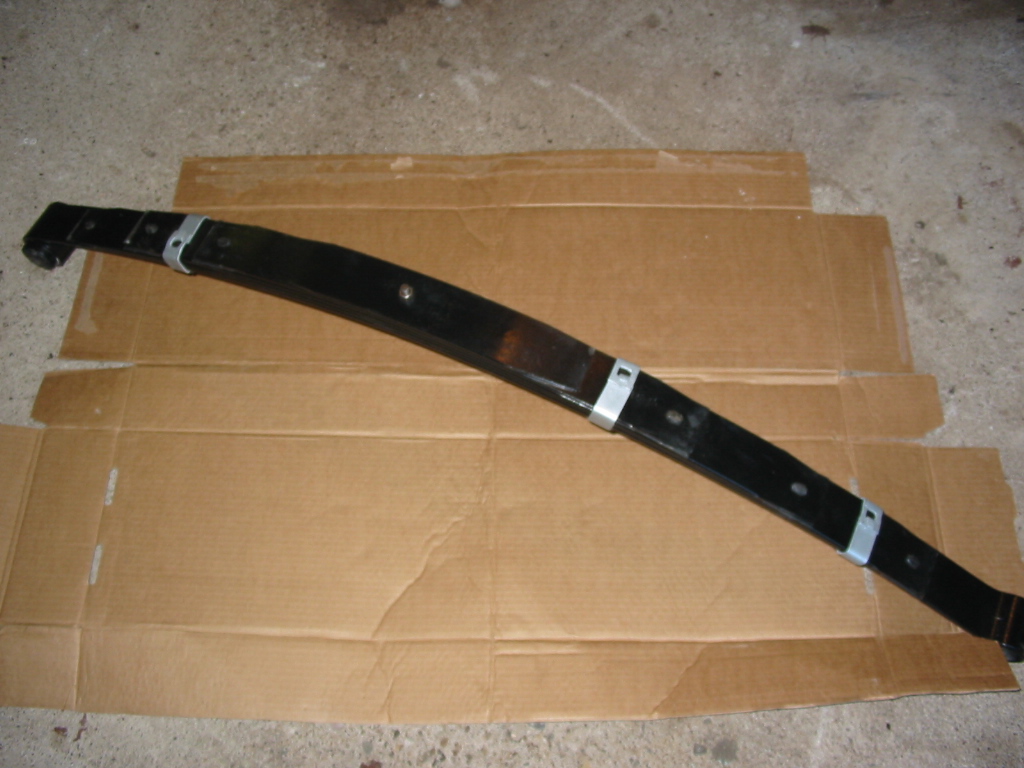

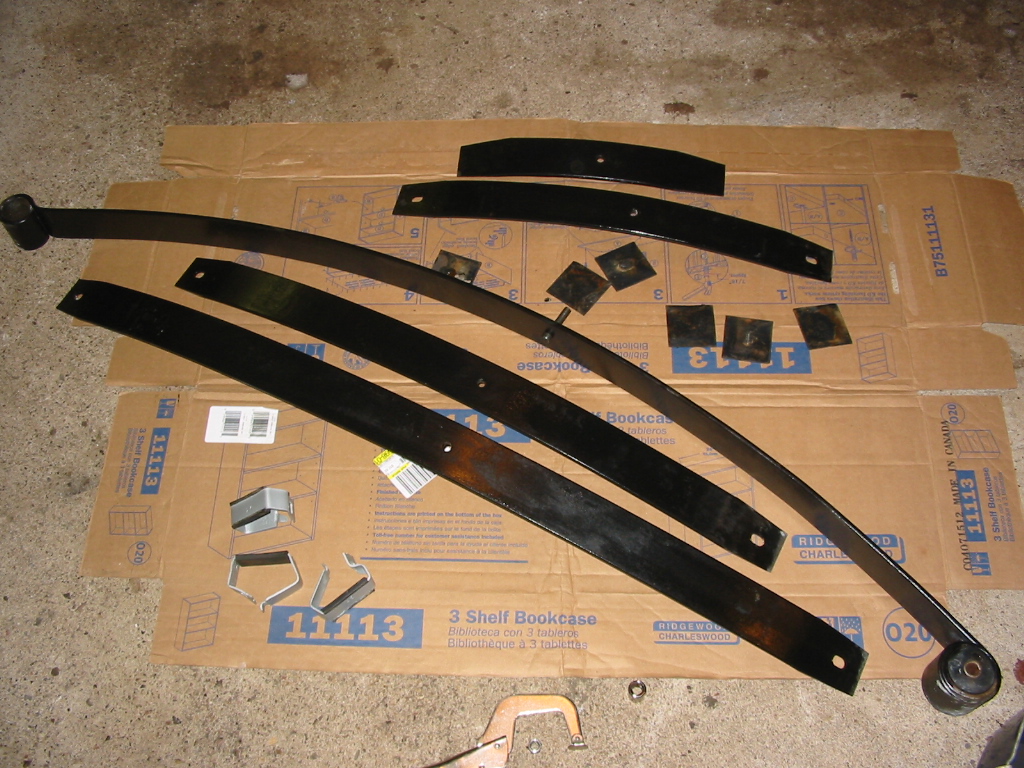

Here a a couple of shots of a cleaned up leaf spring. When I took the car off the road in 1990, the leaf springs and suspension pieces were brand new. For now I decided to clean them up and put them back on the car. Eventually, I will look into a high performance option once the car is on the road.

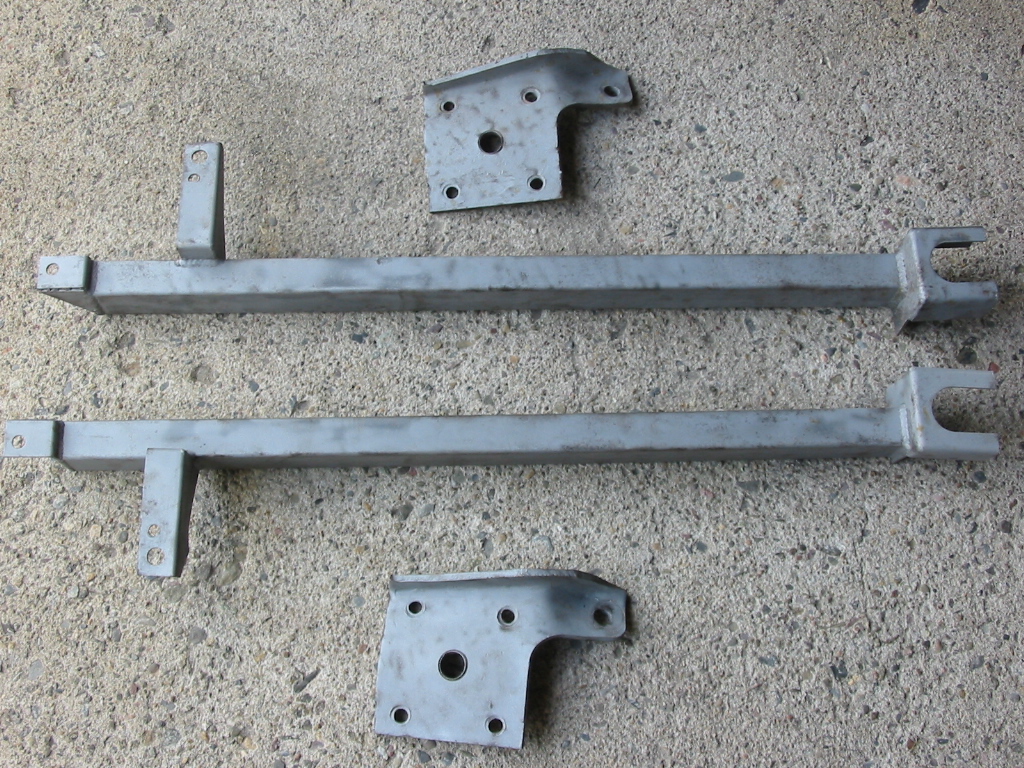

Here is a shot of my blasted subframe connectors and rear shock mounts. These will get a coat of POR15 along with rear end housing.
